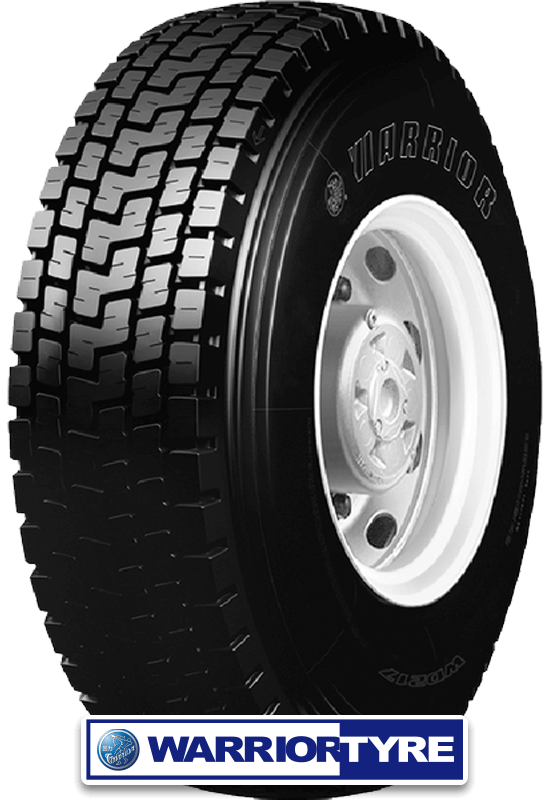

WD217

Regional ( R )

● Wide transverse pattern and grooves design enhances driving performance and wet skid resistance. ● Optimized ratio of groove and block design promotes tire abrasion-resistance. ● Open shoulder structure and special tread compound facilitate tyre heat radiating. ● Wider tread arc width improves the contact pressure of tyre.

C1D

PRODUCT DATA

Size	PR	L.I.	S.R.	O.D.(mm)	T.D.(mm)	S.W.(mm)	RIM	Max.Load Capacity & Inflation Pressure
								Single				Dual
								(kg)	(lbs)	(kPa)	(psi)	(kg)	(lbs)	(kPa)	(psi)
9.5R17.5	16PR	133/131	L	848	17	236	6.75	830	1950	2060	4540	120	4300	830	120
13R22.5	18PR*	154/151	J	1121	19	318	9.75	850	3450	3750	8270	123	7610	850	123
295/80R22.5	18PR	152/149	M	1062	23	293	9.00	900	3250	3550	7830	130	7160	900	130
295/60R22.5	18PR	150/147	L	926	19	289	9.00	900	3075	3350	7390	130	6780	900	130
315/60R22.5	16PR	152/148	L	960	19.5	318	9.75	900	3150	3550	7830	130	6940	900	130
