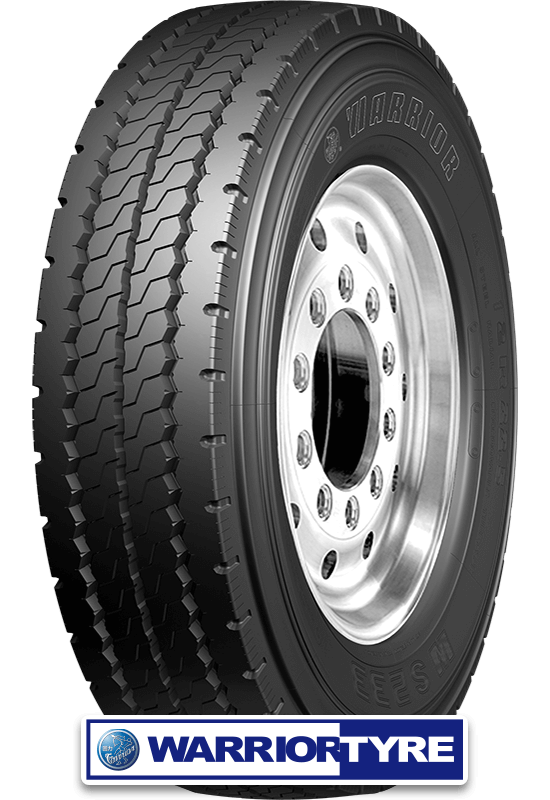

WS233

Regional ( R )

● Superior load-carrying capacity. ● Better abrasion-resistance performance. ● Longer driving distance. ● Enhanced bead and tearing-resistant bead filler promotes loading performance and operation efficiency. ● Low heat formula with half-open shoulder reduces error rate and increases safety performance. ● Finite element optimization tire crown design for improving homogeneity of contract, service life and operation efficiency.

PRODUCT DATA

Size	PR	L.I.	S.R.	O.D.(mm)	T.D.(mm)	S.W.(mm)	RIM	Max.Load Capacity & Inflation Pressure
								Single				Dual
								(kg)	(lbs)	(kPa)	(psi)	(kg)	(lbs)	(kPa)	(psi)
10.00R20	18PR	149/146	J	1056	16	279	7.50	930	3000	3250	7160	135	6610	930	135
11.00R20	18PR*	152/149	K	1085	17.5	292	8.00	930	3250	3550	7830	135	7160	930	135
12.00R20	18PR*	154/151	K	1127	17.5	314	8.50	830	3450	3750	8270	120	7610	830	120
11R22.5	16PR	148/145	L	1055	17.5	281	8.25	850	2900	3150	6940	123	6390	850	123
12R22.5	18PR	152/149	L	1091	17.5	295	9.00	930	3250	3550	7830	135	7160	930	135
13R22.5	18PR*	154/151	K	1126	17.5	310	9.75	850	3450	3750	8270	123	7610	850	123
275/70R22.5	16PR	148/145	L	968	17.5	278	8.25	900	.	3150	.	.	.	900	.
295/80R22.5	18PR	152/149	M	1058	17.5	308	9.00	900	3250	3550	7830	130	7160	900	130
315/80R22.5	20PR	157/154	L	1084	15	316	9.00	900	3750	4125	9090	130	8270	900	130
